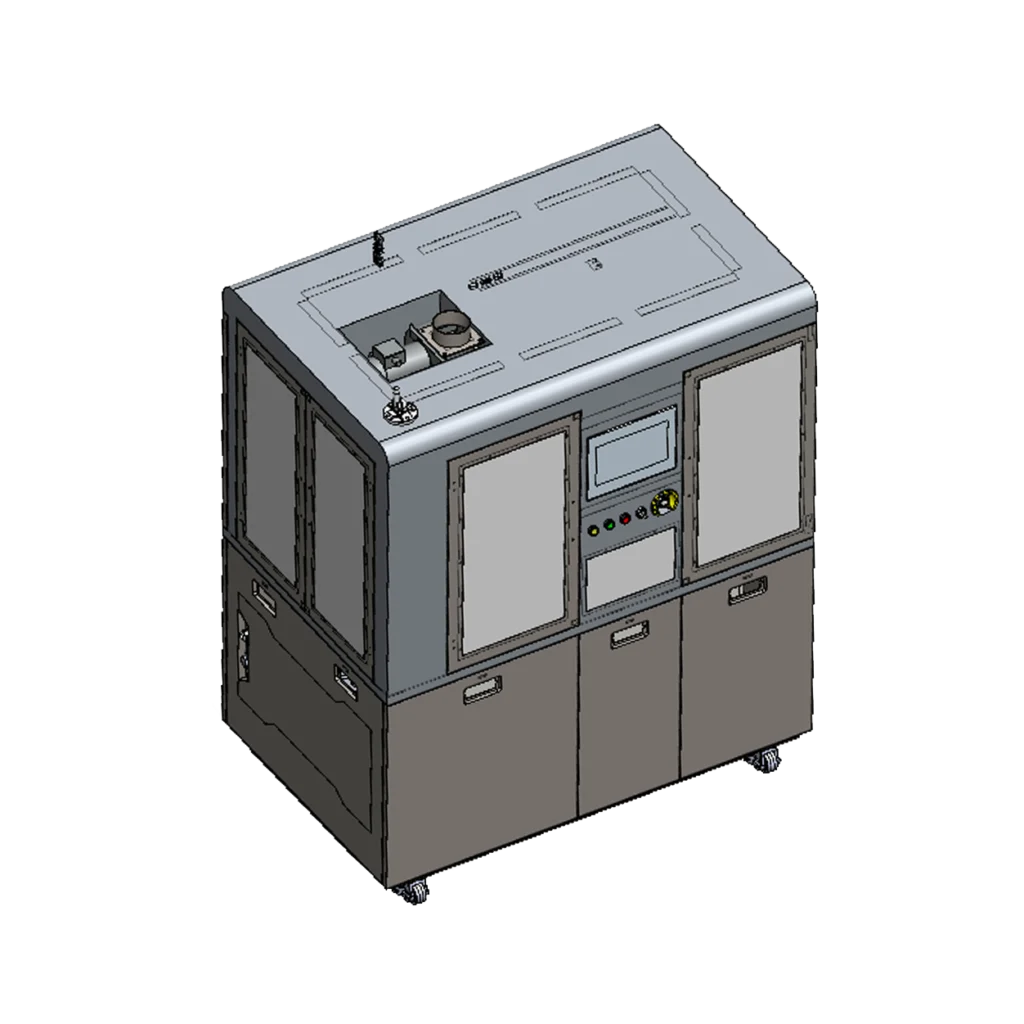

Magazine-Loaded In-Line Atmospheric Plasma Cleaner

Integrated magazine auto-loading system enables automatic part feeding and in-line atmospheric plasma treatment. No vacuum chamber required – can be directly integrated into existing production lines. Ideal for localized or full-surface activation of plastic parts, metal frames, molded components, significantly improving reliability in dispensing, printing, or bonding processes.

Core advantages

· Magazine-style loading design enables rapid material replacement without production downtime, ideal for multi-variety and small-batch production.

· 13.56 MHz high-frequency plasma delivers high activity for excellent removal of oxide layers and organic contaminants.

· Supports both compressed air and nitrogen to meet diverse process requirements for different materials.

· Built-in digital control with RS485 communication and I/O interface, realizing unattended automatic production.

Parameters

Equipment model	–
Power	600W/25KHz
Treatment Width	400-480mm
Handling height	5-15mm
power supply	220V/AC，50/60Hz，3.0kw
