Background
In the modern automobile manufacturing industry, the wheel hub is one of the key components, which directly affects the safety, performance and beauty of the vehicle. With the continuous development of the automotive industry, especially driven by electric vehicles and intelligent driving technology, the design and production of wheel hubs are also facing increasing requirements. This not only includes the selection of materials, weight control, but also involves complex processing processes and efficient production processes. In this context, the introduction of automation equipment is particularly important. Automation equipment suppliers help the automotive industry increase production efficiency, reduce costs, improve product quality, and meet growing market demands by providing advanced technology solutions. Whether in casting, machining or assembly, automation equipment can significantly improve the accuracy and consistency of production.

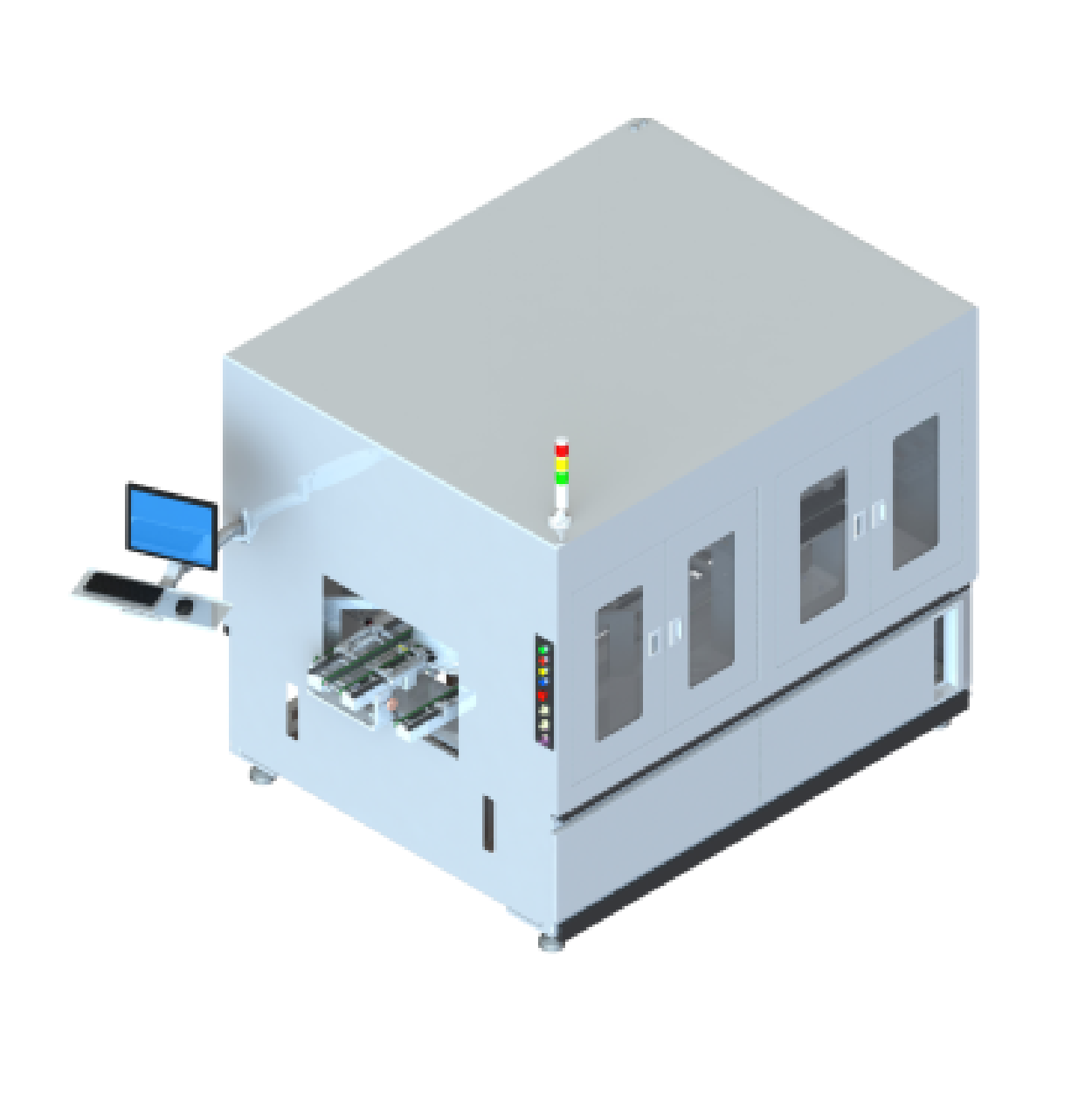

Vehicle hub clearance detection
The hub clearance detection function mainly includes two important aspects: First, it can accurately detect the gap between the hub and the Mosaic to ensure that the fit between the two meets the design standard, so as to avoid loosening or wear problems during the driving process; Second, the function also accurately measures the position of the M mark on the wheel hub to ensure that it is correctly aligned during production and installation, thereby improving overall vehicle performance and safety.
Underlying Parameter
Weight(kg) | 4000 |
Size(mm) | 3900*1500*2400 |
UPH | 180 |
Operation rate (%) | 99% |
Yield(%) | 99% |
Control System | PLC |
Operating voltage (AC) | 220V |
Working pressure (M Pa) | 0.5 |
Wheel hub size detection
The wheel hub size detection function is the key to ensure that the wheel hub meets the design and safety standards. This function mainly covers a number of inspection items, including the diameter of the bolt hole, pitch diameter, position and thickness, to ensure that the bolt can be smoothly installed and evenly stressed; The diameter of the center hole, the diameter of the cover mouth, the thickness of the cover mouth, the diameter and thickness of the cover stop mouth, ensure that the cover is tightly fixed and not easily damaged; And the detection of the inner and outer convex peak diameter to ensure the balance and stability of the wheel hub.
Underlying Parameter
Weight | 2000 |
Working Air Pressure(M Pa) | 0.5 |
Size(mm) | 2300*2000*1900 |
Control System | PLC |
UPH | 240 |
Yield(%) | 99% |
Operation rate (%) | 99% |
Operating voltage (AC) | 220V |
Working pressure (M Pa) | 0.5 |
